Radio Transmitter Board, High Frequency Oscillation Short Low Power Sound Amplification SW Radio Amplifier Kit for DIY Campus Broadcast
$90.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by unity-experte.ch
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$90.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by unity-experte.ch
Free 30-day returns Details
Product details
| Management number | 215164779 | Release Date | 2026/04/12 | List Price | $36.00 | Model Number | 215164779 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Application: This is a short transmitter, mainly used in short radio experiments and tests, understand the principle of modulation.

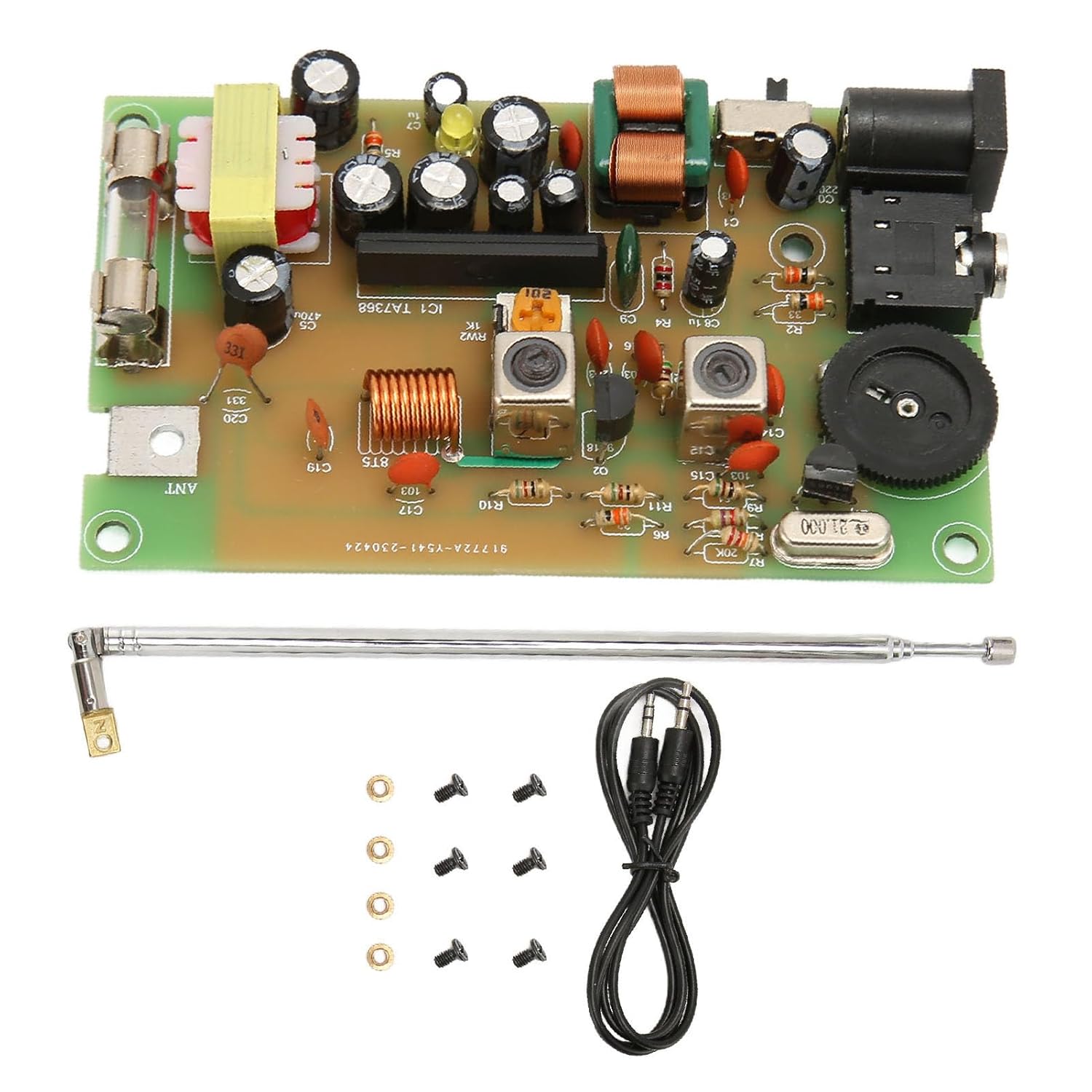

- Structure: Mainly consists of power input, sound amplification, sound modulation, 21MHZ high frequency oscillation, Class C high frequency amplification, 21MHZ low pass filter.

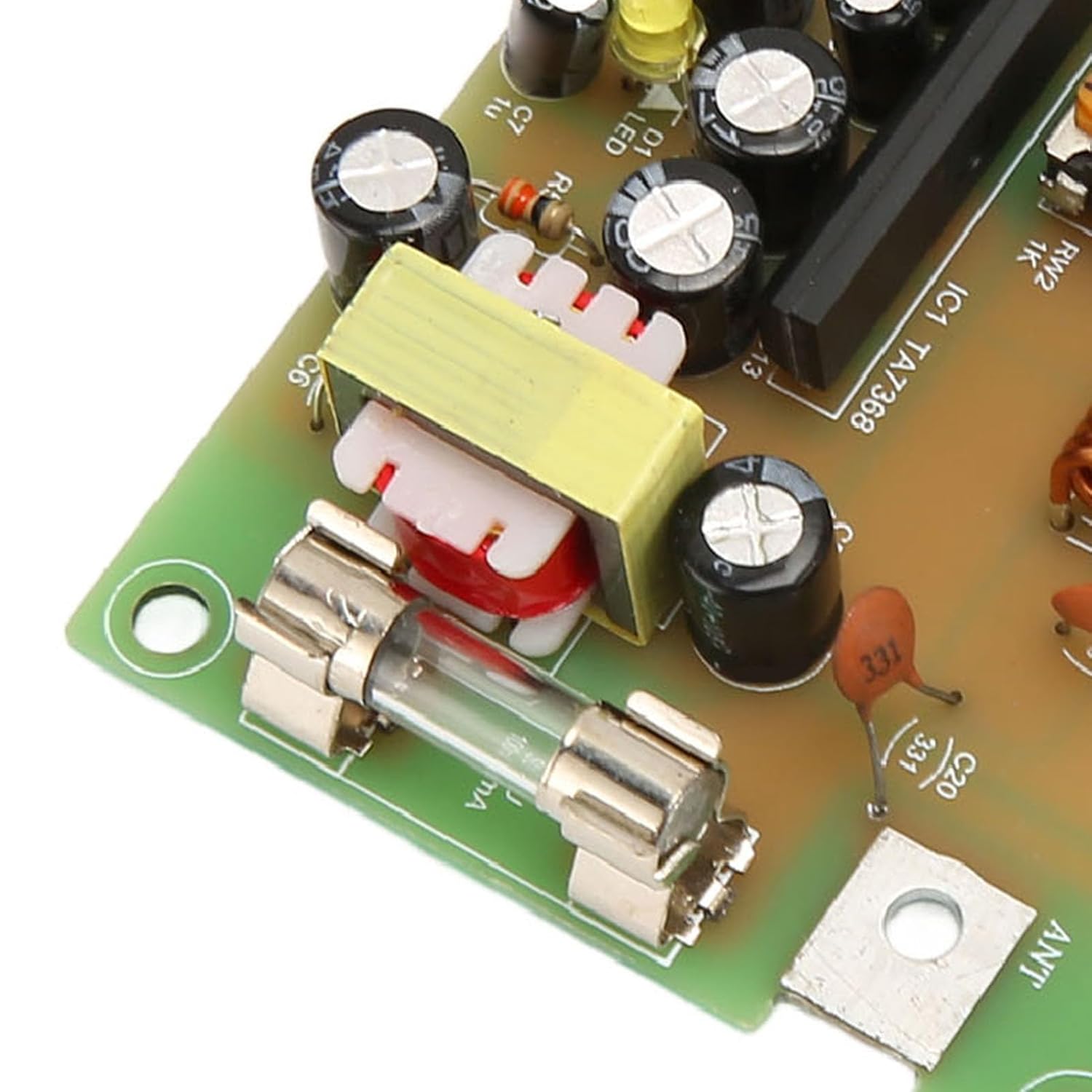

- Power Input: Professional radio transmitter board, C1 to C6 for the filter capacitors, reduce the power supply interference ripples.
- Sound Modulation: Transformer B1 secondary inductance sound voltage superimposed on the DC power, to get the modulation voltage with the change of the sound source.

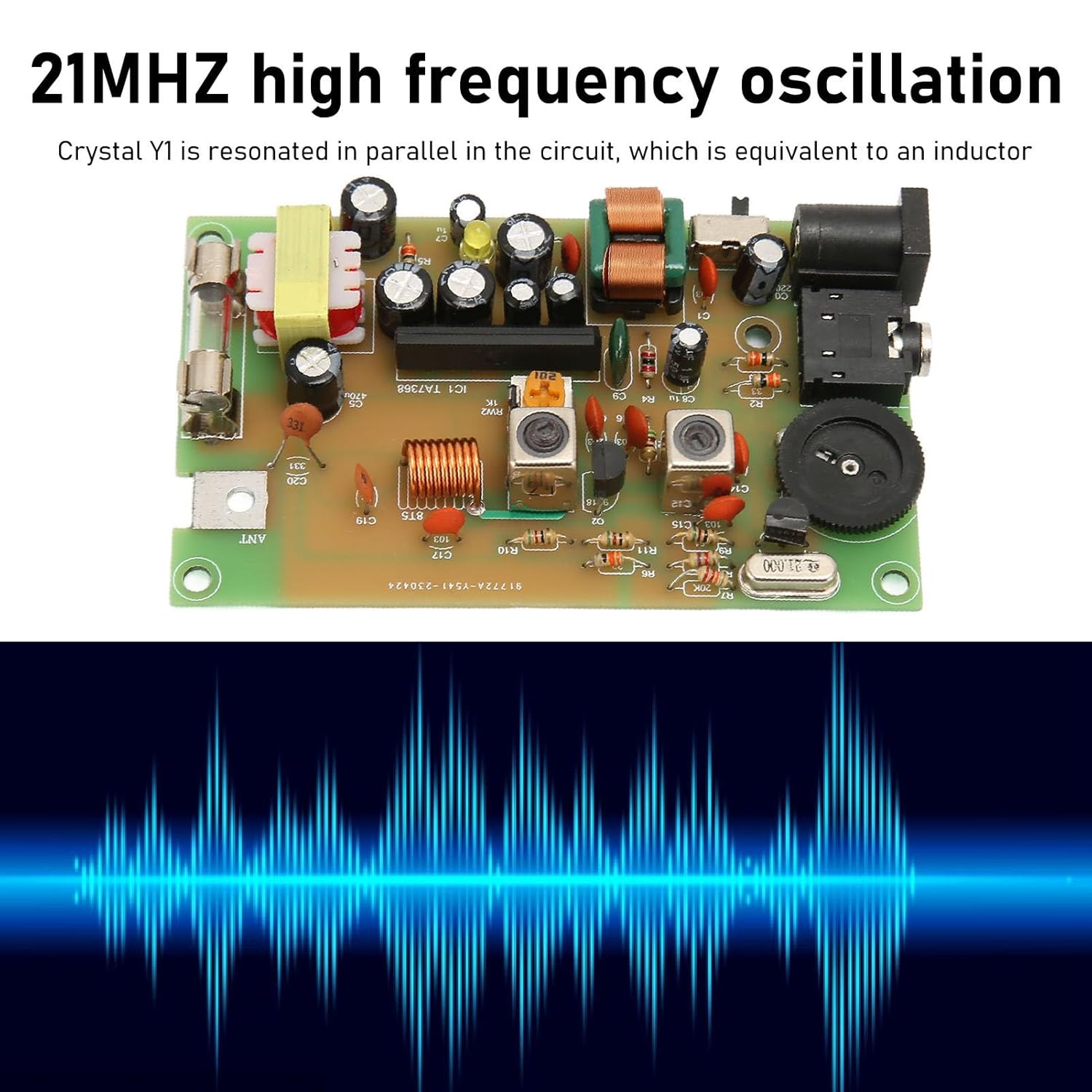

- High Frequency Oscillation: 21MHZ high frequency oscillation, crystal Y1 in the circuit is a parallel resonance, equivalent to the inductor.
